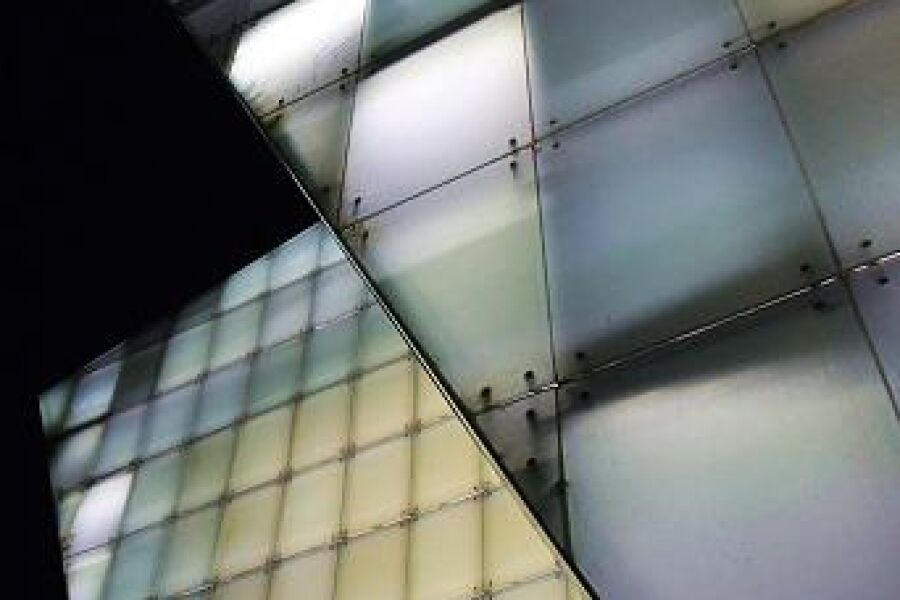

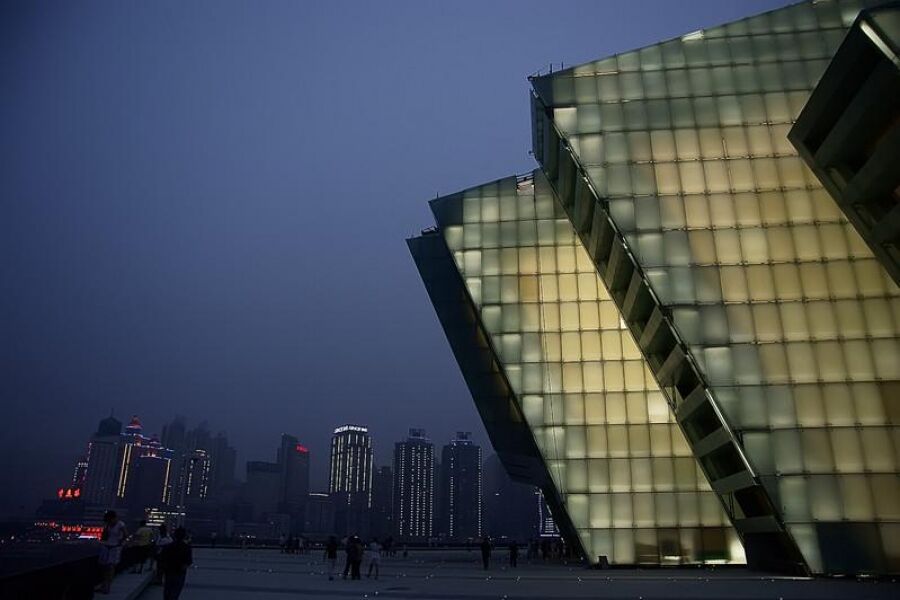

Introduction of the application of patterned curtain wall glass to the Chongqing Grand Theatre Project£º

Chongqing Grand Theatre patterned glass curtain wall combination:

5mm patterned semi tempered (pebbles) +2.28PVB+12mm colored glazing tempered (Pre embedded point structure)

Total area of patterned laminated glass in Chongqing Grand Theatre: 51000 square meters

Shaped glass using different shape of a total of 28697 pieces, and each piece of glass has four pre-embedded parts, glass processing is very difficult. The project is currently the largest area in the world to use patterned laminated glass.

Patterned glass: manufacture of Qingdao Jinjing

Float glass: manufacture of Jinjing Technology

Cutting, drilling, colored glazing, tempered, laminated was completed in Qingdao Jinjing.

Completion time, August 25, 2009.
